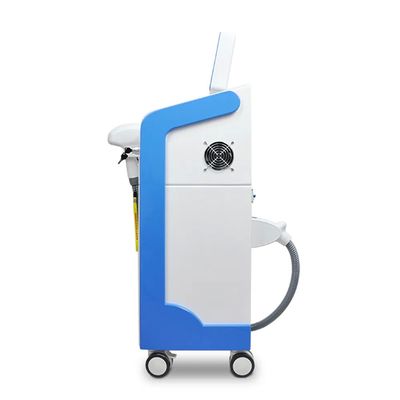

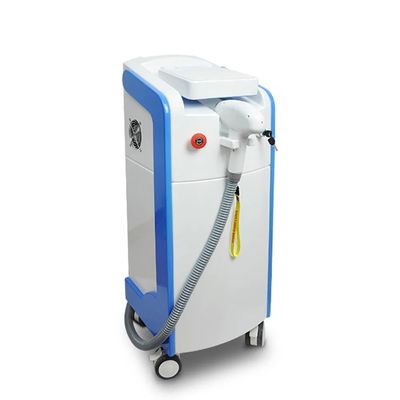

CE Approved Fiber Coupled Diode Laser 808nm Hair Removal Beauty Machine
Working Principle
The 808nm diode laser hair removal machine operates on the principle of selective photothermolysis. The 808nm wavelength laser is optimally absorbed by melanin in the hair follicle while minimizing damage to surrounding tissue. The absorbed light energy converts to heat, raising the follicle temperature sufficiently to destroy its structure permanently through a natural biological process.
This advanced technology utilizes a long pulse-width 808nm laser that penetrates deep into hair follicles. The system incorporates special cooling technology to protect the skin and ensure comfortable treatment.
Technical Specifications
| Description |
808nm diode laser hair removal machine |
| Voltage |
110V-130V / 60Hz, 220V-240V / 50Hz |
| Display |
8.4 inches touch screen |
| Laser Type |
Diode laser |
| Wavelength |
808nm |
| Output Power |
Microchannel: 3 chips-450W, 4 chips-600W, 6 chips-900W
Macro channel: 6 bars-360W, 8 bars-480W, 12 bars-720W |
| Energy Density |
1-120J/cm² |
| Pulse Width Range |
1-400ms |
| Frequency |
1-10Hz |
| Spot Size |
15*15mm² (Optional: 31*25mm²) |
| Cooling System |
Semiconductor + intelligent cooling + water + wind + gel |
| Skin Cooling |
TEC+Sapphire |
| Dimensions |
51*43*110cm |
Technical Advantages
- 808nm wavelength provides optimal melanin absorption for effective hair removal with fewer treatments
- Sapphire contact cooling protects skin and enhances comfort during treatment
- Automatic parameter adjustment based on hair thickness and treatment area
- No guide light required - laser activates upon skin contact
- Advanced expert operating system with automatic parameter optimization
Treatment Areas
Effective for permanent hair removal on all body areas including face, lips, beard, underarms, limbs, chest, bikini line, and more. Meets international standards for hair reduction.
Packaging & Shipping
Packaging: Standard export wooden case or aluminum case
Shipping Methods: By sea, air, or express (DHL, FEDEX, TNT, EMS, etc.)
Payment Terms: T/T (Bank transfer), Western Union
We select the most economical and reliable shipping method to ensure timely delivery. Tracking number provided upon shipment.
Frequently Asked Questions
1. Do you offer warranty?
Yes, we provide 12 months warranty on the host machine and 3 months free replacement warranty for handles, treatment heads, and parts.
2. What is your after-sale service policy?
Our professional technical support team is available via telephone, webcam, and online chat (Google Talk, Facebook, Skype) to provide timely assistance.
3. What certifications does the machine have?
All machines are CE certified, ensuring quality and safety. We maintain strict quality control standards for reliable performance.
4. Do you provide training on machine operation?
Yes, we supply a complete user manual, instructional videos, and 24/7 online consultation to ensure easy operation.
5. Why choose our product?
With 12 years of experience in beauty machine production, we offer competitive pricing, strong R&D capabilities, comprehensive warranty, and OEM/ODM services. Our CE certification ensures legal compliance for use and resale.
